ASME B 16.47 Series B WNRF Flanges

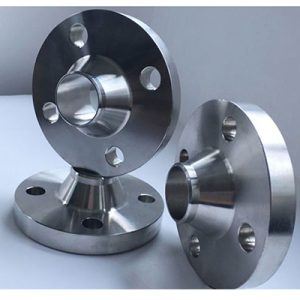

ASME B 16.47 Series B WNRF Flanges Manufacturer
S Nomi is a renowned ASME B 16.47 Series B WNRF Flanges Manufacturer serving the regions of Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Jharkhand, and Assam. We specialize in manufacturing Weld Neck Raised Face (WNRF) Flanges that conform to ASME B 16.47 Series B standards, ensuring reliable performance in high-pressure applications. These flanges are known for their robust design, precision engineering, and excellent durability, making them ideal for demanding industrial environments.
About the Product:
The ASME B 16.47 Series B WNRF Flanges are designed to handle high-pressure piping systems in industries such as oil and gas, petrochemical, and power generation. These flanges feature a raised face for better sealing and a long, tapered hub that ensures a smooth flow of fluids, reducing turbulence and pressure drop. Manufactured from high-grade materials, S Nomi’s WNRF flanges are built to provide a secure and leak-proof connection.
Specifications:
- Standard: ASME B 16.47 Series B
- Material: Carbon steel, stainless steel, alloy steel, and other materials as per client requirements
- Size Range: From 26 inches to 60 inches (DN 650 to DN 1500)
- Pressure Class: Available in Class 150, 300, 400, 600, 900, and beyond
- Face Type: Raised Face (RF)
- Finish: Precision machined surface for a superior seal
- Connection Type: Weld neck for permanent and high-pressure applications
Application:
- Oil and Gas Pipelines: Ideal for high-pressure pipelines in the oil and gas industry
- Petrochemical Plants: Used in chemical processing units where high-temperature and high-pressure resistance is required
- Power Plants: Suitable for steam lines and cooling systems in power generation facilities
- Offshore and Marine Engineering: Widely used in offshore platforms and shipbuilding industries
- Heavy Industrial Machinery: Used in large-scale mechanical systems where durable and strong connections are essential
Technical Features:
- High-Pressure Performance: Designed to withstand high-pressure and high-temperature applications, ensuring reliable sealing
- Raised Face Design: The raised face ensures a tight seal with the use of gaskets, reducing the risk of leaks
- Tapered Hub: The long, tapered hub provides reinforcement and reduces stress concentrations at the flange
- Corrosion Resistance: Made from corrosion-resistant materials for extended life in harsh environments
- Precision Machined: Engineered to tight tolerances, ensuring a perfect fit and reducing fluid turbulence
- Custom Solutions: Available in a variety of materials and sizes to meet specific industry needs
At S Nomi, we are committed to delivering ASME B 16.47 Series B WNRF Flanges that meet the highest industry standards. Our flanges offer reliable performance, durability, and safety in even the most challenging environments, making us a trusted manufacturer across various industries
